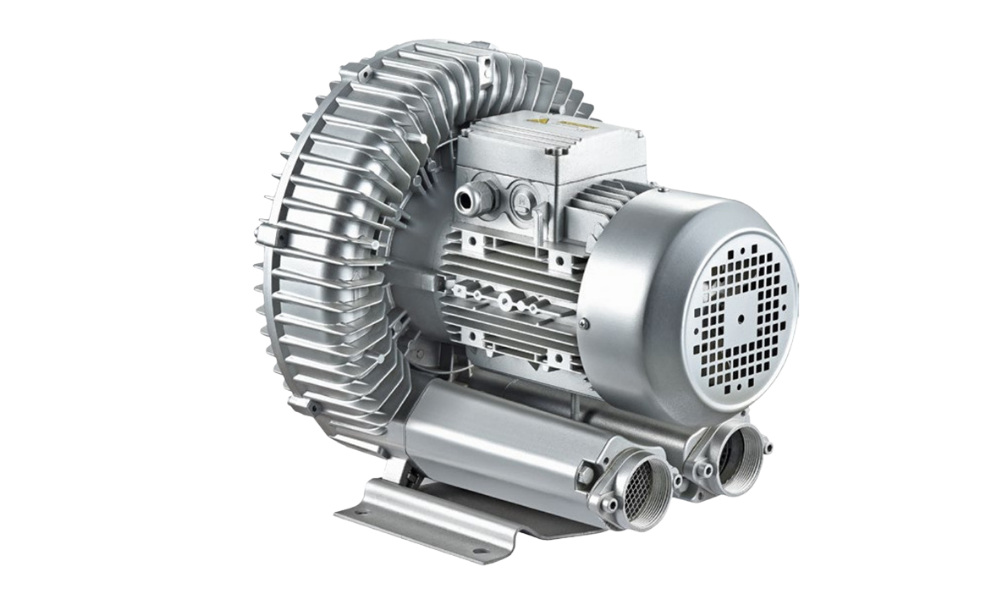

*The motor is wide voltage and double-frequency.
IsolationRate F,IP54.
*High pressure,large air flow and low noise.
*Easy operate, low maintenance costs, small
occupation
Technical Parameter
| Model |
Single/Double
Impeller |
Frequency (Hz) |
Power (kW) |
Voltage (V) |
Current (A) |
Max Air Flow (m³/h) |
Rated Suction Pressure (mbar) |
Exhaust Pressure (mbar) |
Noise dB(A) |
Weight (kg) |
| 230A11 | Single | 50 | 0.4 | 220–240V | 2.7 | 105 | -100 | 130 | 54 | 13 |
| | 60 | 0.5 | 220–240V | 3.2 | 120 | -120 | 150 | 57 | |
| 220A21 | Double | 50 | 0.7 | 220–240V | 4.5 | 85 | -210 | 240 | 55 | 15 |
| | 60 | 0.8 | 220–240V | 5.6 | 102 | -250 | 250 | 61 | |
| 320A31 | Double | 50 | 1.1 | 220–240V | 7.3 | 120 | -240 | 280 | 56 | 18 |
| | 60 | 1.3 | 220–240V | 8 | 145 | -130 | 260 | 58 | |
| 430A21 | Single | 50 | 1.1 | 220–240V | 7.3 | 180 | -170 | 210 | 63 | 17 |
| | 60 | 1.3 | 220–240V | 7.8 | 210 | -145 | 145 | 64 | |
| 420A31 | Double | 50 | 1.5 | 220–240V | 9 | 150 | -280 | 290 | 66 | 26 |
| | 60 | 1.75 | 220–240V | 10 | 180 | -250 | 280 | 69 | |
| 2HB230H16 | Single | 50 | 0.4 | △/Y 345–415V | 2.6/1.5Y | 105 | -120 | 130 | 54 | 11 |
| | 60 | 0.5 | △/Y 345–415V | 2.6/1.5Y | 120 | -150 | 150 | 57 | |
| 2HB330H16 | Single | 50 | 0.75 | △/Y 345–415V | 3.8/2.2Y | 140 | -100 | 100 | 56 | 13 |
| | 60 | 0.83 | △/Y 345–415V | 3.8/2.2Y | 165 | -115 | 100 | 58 | |
| 2HB320HH26 | Double | 50 | 0.85 | △/Y 345–415V | 4.2/2.4Y | 110 | -200 | 230 | 58 | 17 |
| | 60 | 0.95 | △/Y 345–415V | 4.0/2.3Y | 130 | -240 | 240 | 60 | |
| 2HB320HH36 | Single | 50 | 1.3 | △/Y 345–415V | 5.7/3.3Y | 110 | -160 | 310 | 58 | 18 |
| | 60 | 1.5 | △/Y 345–415V | 6.0/3.5Y | 130 | -280 | 320 | 60 | |
Any special specifications please contact us for customization.
