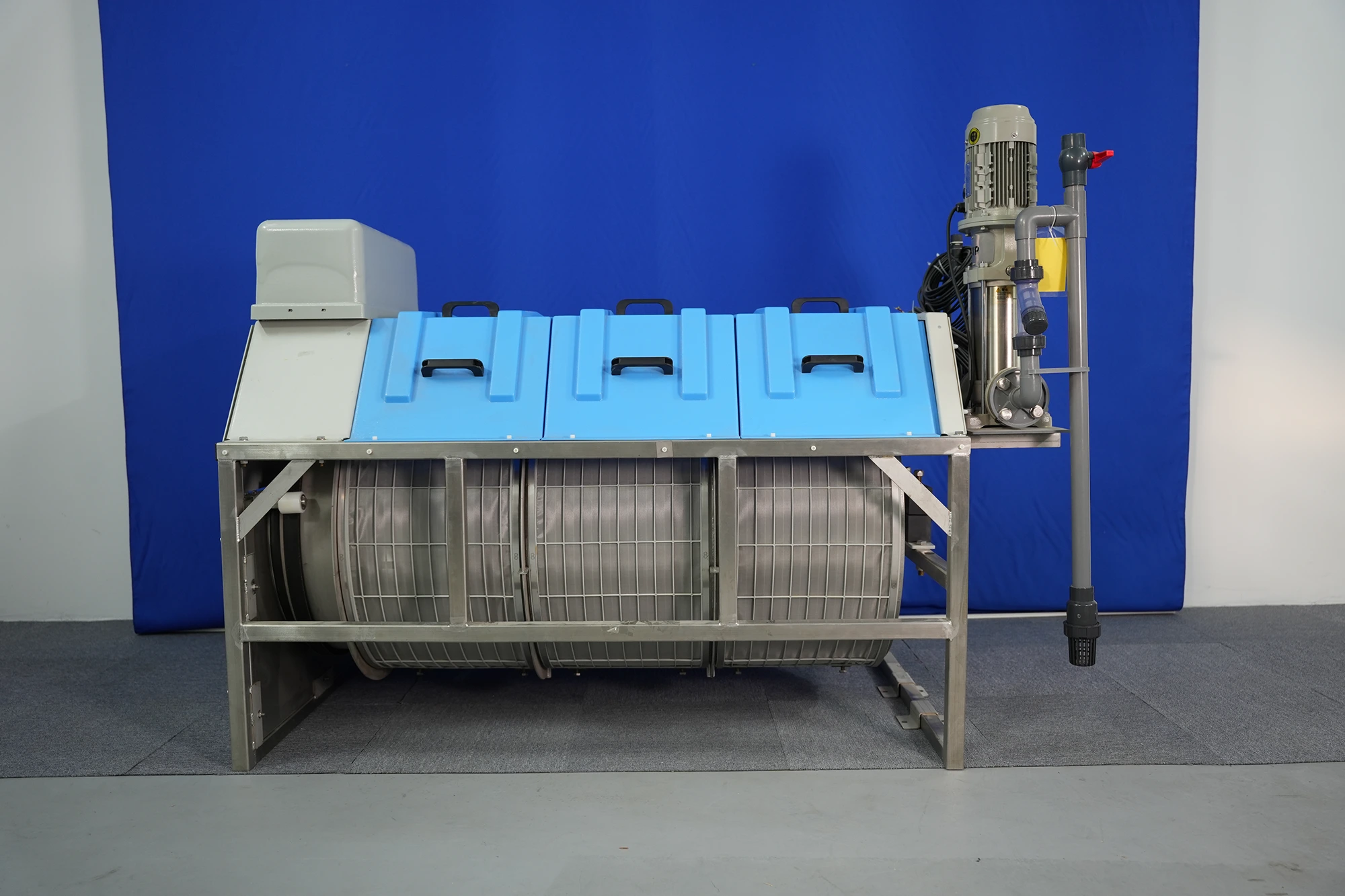

Stainless Rotary Drum Filter

The Drum Filter is a high-efficiency mechanical filtration solution engineered to remove solid waste and suspended particles from your water. By delivering crystal-clear water, it is fundamental to maintaining optimal water quality, reducing disease risk, and safeguarding the health of your aquatic stock. Crafted from durable stainless steel with a unique design, our drum filter provides unmatched filtration performance and reliability. It is the ideal choice to ensure the success and productivity of any aquaculture operation.

No items found.

Stainless Rotary Drum Filter

Key Advantages:

Exceptional Efficiency: The rotating drum mechanism effectively filters out even the finest particles, creating a pristine and healthy environment for your aquatic life to thrive.
Minimal Maintenance: Designed for ease of use, our filter requires very little manual intervention, saving you time and operational costs.
Built to Last: Constructed with high-quality materials and advanced technology, our drum filter guarantees outstanding durability and reliable performance, even in the most demanding, high-density aquaculture environments. Its robust design ensures peak operational efficiency for years to come.

‍

Technical Parameter

Model No.	Size (mm)	Flowrate (m³/h)	Precision (µm)	Voltage (V)	Power		Current (A)
Model No.	Size (mm)	Flowrate (m³/h)	Precision (µm)	Voltage (V)	kW	HP	Current (A)
HH-PS60	1480×1050×900	10–60	60	380	0.67	0.9	1.72
HH-PS90	1520×1180×1150	70–100	60	380	0.93	1.25	2.28
HH-PS120	1530×1400×1280	100–150	60	380	1.15	1.54	2.92
HH-PS200	2020×1400×1280	150–200	60	380	1.5	2.01	4.12
HH-PS300	1600×1750×1800	200–300	60	380	2.25	3.02	5.95
HH-PS600	2500×1750×1800	400–600	60	380	2.95	3.95	7.8
HH-PS900	3500×2350×1800	700–900	60	380	4.1	5.49	10.6
HH-PS1200	3750×2350×2370	1000–1200	60	380	4.5	7.37	14

Any special specifications please contact us for customization.
